50X50MM 24 IN ONE PC lens module Wide streetlight angle superhighway lens
Quick Detail:
Model No:SUN-D5050-24H1-151X81-TPII-S
Material: PC
Beam Angle : TYPE2-S
Lens size:49.9X49.9X3.95MM
Match LED: 3030SMD LED
Small footprint, high light output
Features :
- This SKD 24 LED Array lens with PCB Module is best design power lamps like 15-21W for per module.
- The total cost is significantly reduced compared with using new complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
- The LED retrofit kits contain no any mercury or lead.
- Does not produce UV rays that harm people’s eyes.
- Directional light means no light pollution, dark sky compliance.
.
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
| 1, Product Name | 50X50MM 24 IN ONE PC lens module Wide streetlight angle superhighway lens |
| 2, Model No | SUN-D5050-24H1-151x81-TPII-S |
| 3, Main parts | 24 Array lens , silicon gasket |
| 4, Lens Material | PC |
| 5, Lens size | 49.9X49.9X3.95MM |
| 6, Transmittance | 91% |
| 7,LEDS | 3030 SMD LED |
| 8, Sample | 3-4 work day |
| 9, Delivery | 5-7 work days for 10000 sets |
| 10, Angle | 151X81 DEGREE |
| 11, Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| 12, Main market | Europe, South America,North America, Asia |
Shipping and delivery time:
| DHL/UPS/TNT/FEDEX | 4-5 working days |
| EMS | 10-15 working days |
| HK Post Air Mail Register | 15-18 working days |
| Trade Terms | FOB|EXW|CIF|CFR |
| Sample availability | YES |
| Delivery time | 3-4 working days |

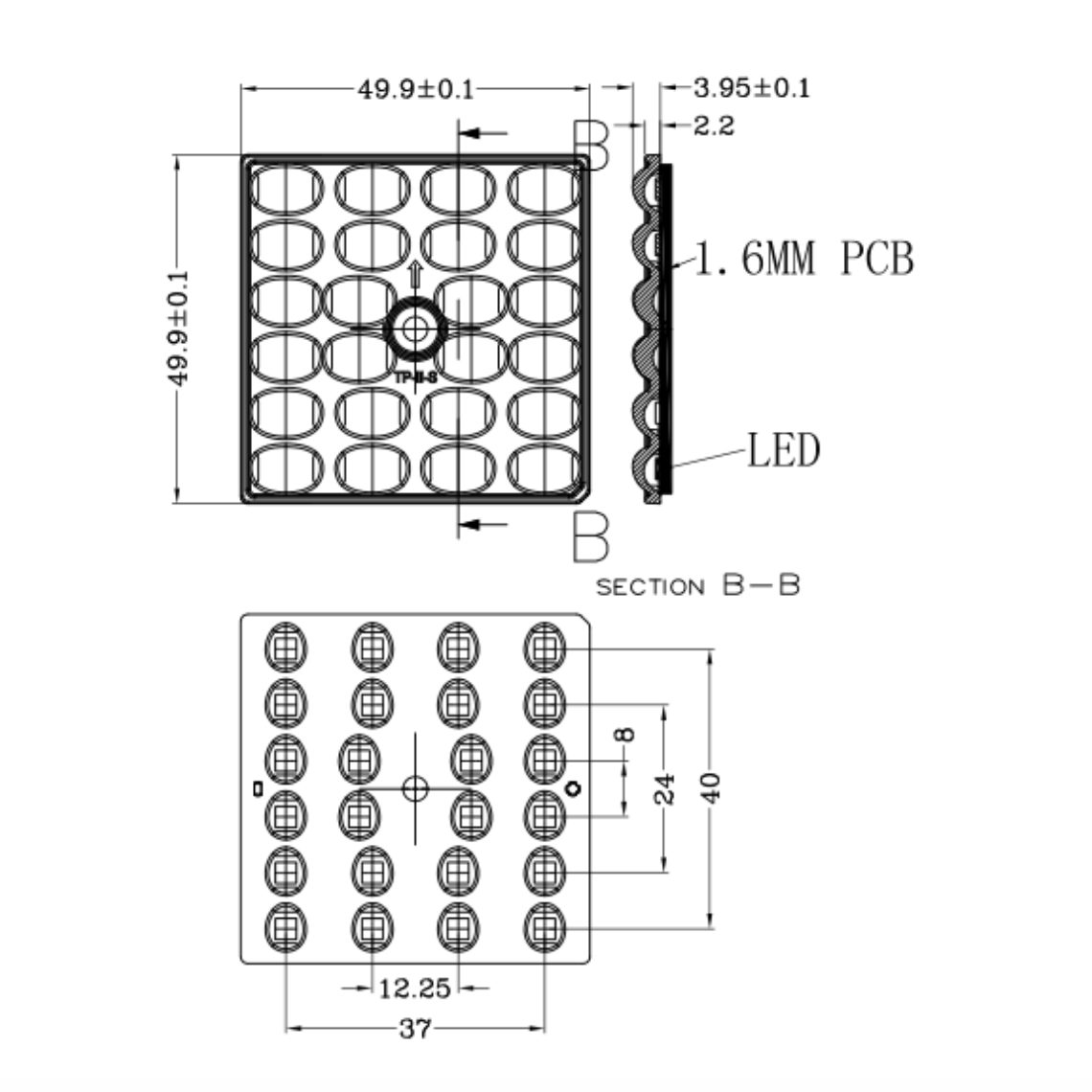

LENS Dimensions :

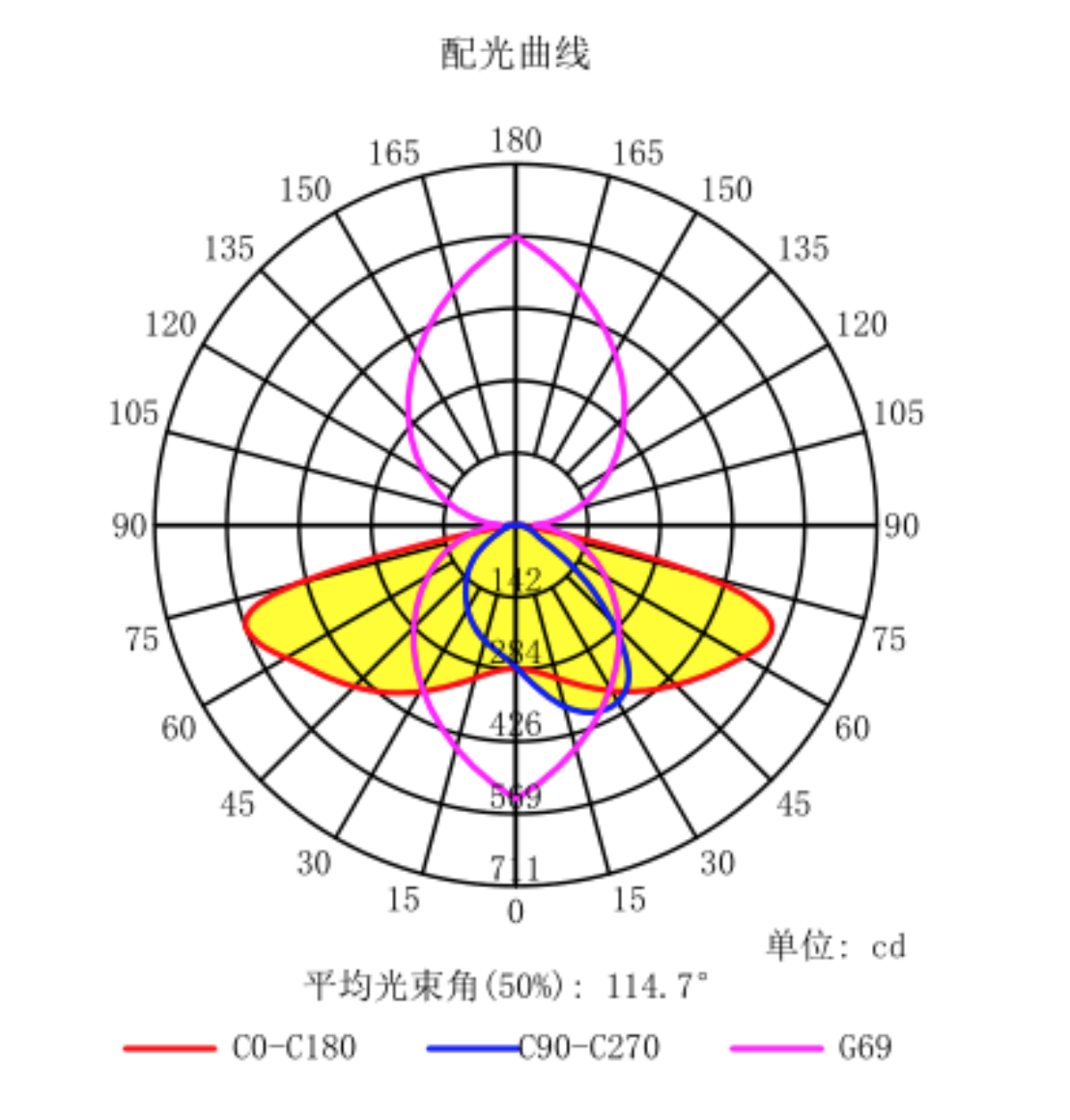

Beam pattern:

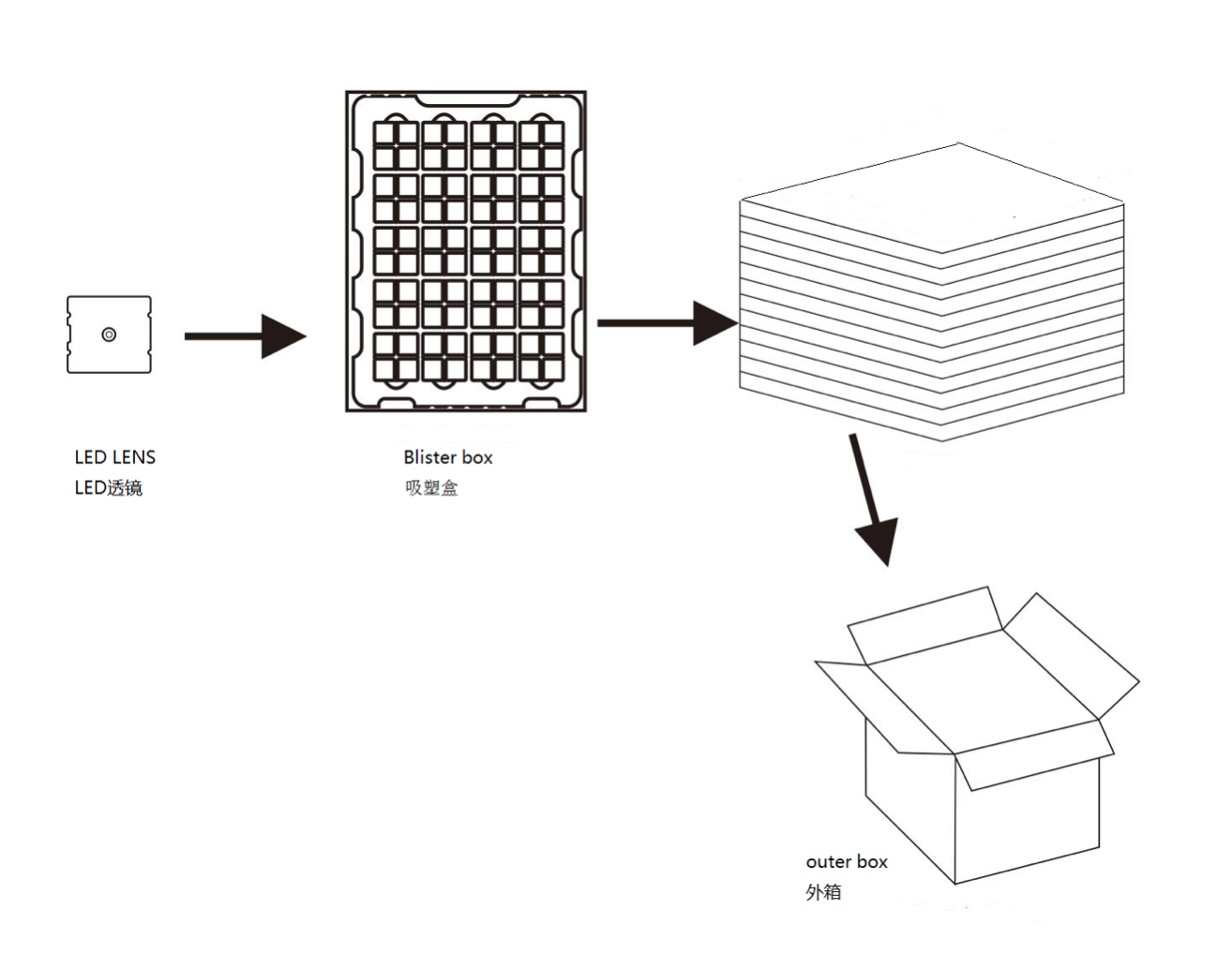

Packing:
Related for 24 in 1 Lens:
Application Notes:
(1)Please use a litter water and soft fabric (air-laid paper) to clean the lens & reflector if necessary.
(2)Forbid to use industrial solvent to clean the lens, such as alcohol.
(3)The working temperature is -35oC~+120oC.
(4)Storage environment temperature is 0oC~40oC,humidity is 30%~95%. Optic Lens has the function to change the ray of light, it is made of optical material, the effect shall be influenced once pollute. Please do not open the packing before use it,to avoid the dust pollution.
(5)Protect the product from the sun and other ultraviolet ray, as these will lead to aging, change color, crack, etc.
(6)Please ware gloves once install the lens, avoid to abrasion the lens surface. (7)Forbid to use acidic or alkaline solution touch the product, avoid to generate the chemical reactions.
